Protection welding wire flow chart

The CO2 gas protection welding wire, buries the are to bury the ine whole set production equipment

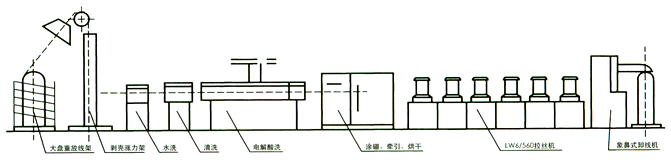

Rough automatic production line general arrangement

Rough production line:Frequency conversion velocity modulation PLC control Highest line speed

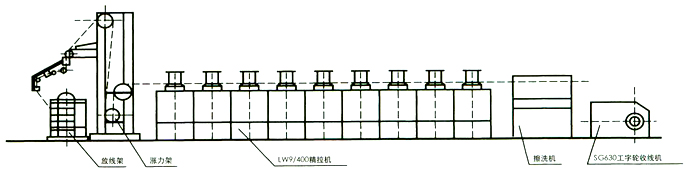

The essence pulls the automatic production line general arrangement

Essence pulls production line:Frequency conversion velocity modulation PLC control Higest line speed

The first step：First processes

The second step：Roungh

Widening of the former for wire-line processing,and supporting the use of coarse Rafah.

Handling wire：φ4-φ10mm

Maximum speed：2.5m/s

The third step：The essence pulls

The fourth step：Coppre-Plating

CO2 wire copper production line φ0.6-φ1.6

Copper wire submerged arc welding production lines：φ2-φ64

4Line-25-copper lines,applicable to 2000T-20000T output

Equipment Name	Configuration parameters
630（760）630（760）Actinomyces Machine	Constant tension without power
300-400Traction machine	4kw-7.5kw Frequency Control
630（760）Admission Machine	4kw Frequency Control
Copper groove	According length plating process requirements for desigh speed,including scrub, electrolysis caustic washing,cold (hot)water-washed,electrolytic pickling,washed, activation,copper,washed,and,washed,hot water washing, drying

The fifth step：The essence circles
